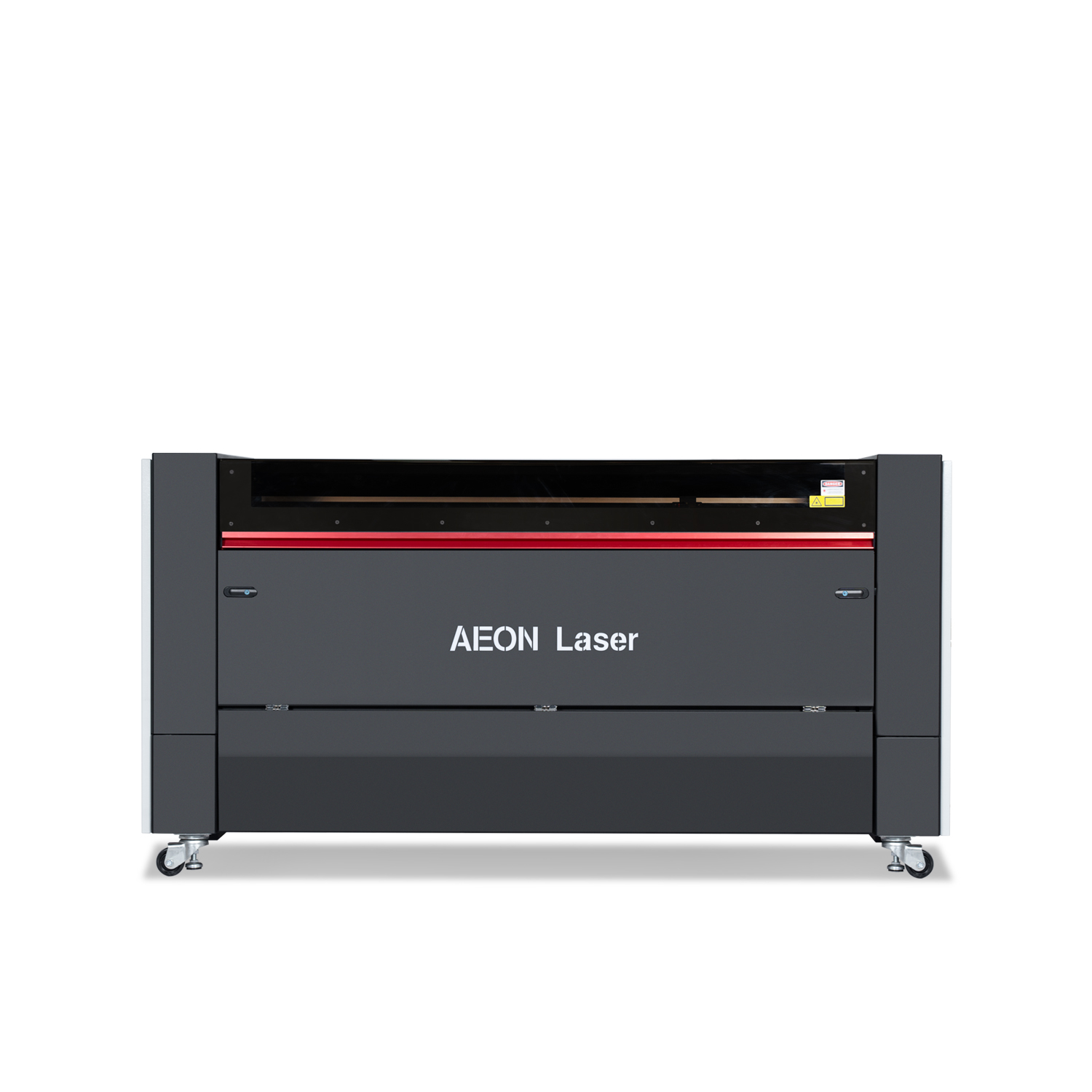

NOVA Elite16
Industrial Power — Built to Cut. Engineered to Win. Takes Your Business to the Next Level.
⚡️ Perfect for jumping in headfirst or taking your business to the next level.
⚡️ Maximizes floor space and comes apart to fit through a standard doorway.
⚡️ Delivers faster acceleration and shorter cycle times than any comparable laser.
⚡️ An excellent choice for batch engraving or the cutting of large sheet stock.
⚡️ Engraves large-sized cylindrical items with the addition of a rotary attachment.
Global distributor network with guaranteed local service.
Privileged Service
Comprehensive support, priority response, and tailored solutions to ensure your business runs smoothly.
Do What You Think?
Let NOVA Elite16 help you realize your imaginary world
Which One Suits You Better
NOVA Elite16
NOVA Super16
1600*1000
Machine Dimension(mm)
1600*1000
Machine Dimension(mm)
200mm
Z Axis Lifting Space
200mm
Z Axis Lifting Space
120KG
Max Lifting Capacity
120KG
Max Lifting Capacity
Glass: 90W/100W/130W/150W
Laser Tube Power
Glass: 90W/100W/130W/150W
RF: 30W/60W
Laser Tube Power
1200mm/s
Max Engraving Speed
4200mm/s (Super)
Max Engraving Speed
5G
Acceleration
8G (Super)
Acceleration
DC Steepers
Motor
AC Servos (Super)
Motor
<=0.1mm
Positioning Accuracy
<=0.1mm
Positioning Accuracy
Honeycomb + Blade table
Working Table
Honeycomb + Blade table
Working Table
Built-in 5200 chiller
Cooling system
Glass: Built-in 5200 chiller
RF: Air-cooled
Cooling system
Built-in 5200 chiller
Fume Exhaust Fan
Built-in 500W (Auto Start-stop)
Fume Exhaust Fan
Built-in compressor 750W with 40L air tank (Auto Start-stop)
Air Assist
Built-in compressor 750W with 40L air tank (Auto Start-stop)
Air Assist
√
XY axis fully dust-proof
√
XY axis fully dust-proof
√
Auto Focus
√
Auto Focus
√
Wireless Connectivity
√
Wireless Connectivity
√
Red Dot Positioning
√
Red Dot Positioning
√
Material Pass Through Door
√
Material Pass Through Door
100° 8 megapixel (3840x2160)
Camera
100° 8 megapixel (3840x2160)
Camera
√
Tooless optical system
√
Tooless optical system
1G
Internal Memory
1G
Internal Memory
√
Smart Panel (monitoring function)
√
Smart Panel (monitoring function)
√
Fault alarm and diagnosis
√
Fault alarm and diagnosis
√
Operation status light
√
Operation status light
√
Water Flow Protection
√
Water Flow Protection
√
Water Temperature Alarm
√
Water Temperature Alarm
Rdworks/Lighburn(Optional)
Operating Software
Rdworks/Lighburn(Optional)
Operating Software
CorelDraw/Illustrator/AutoCAD
Compatible Design Software
CorelDraw/Illustrator/AutoCAD
Compatible Design Software
Class 1 laser product
Laser Class
Class 1 laser product
Laser Class
√
Cover lid interlock
√
Cover lid interlock
√
Side panel lid interlock
√
Side panel lid interlock
√
Key lock
√
Key lock
2100*1510*1125
Machine Dimension(mm)
2100*1510*1125
Machine Dimension(mm)
566KG
Net Weight (KG)
566KG
Net Weight (KG)
730KG
Gross Weight(KG)
730KG
Gross Weight(KG)
