3.1 Unpacking the NOVA

3.3 Setup and Installation Guide
This laser machine features a compact design that integrates a water cooling system, exhaust fan,
and air assist system, simplifying the setup process. Installation is straightforward and does not
require a separate water bucket or air pump. You can get started with just five easy steps.

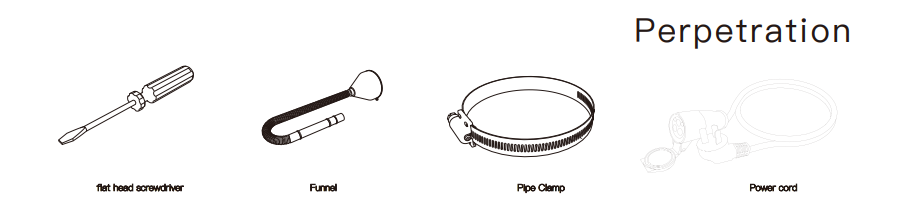

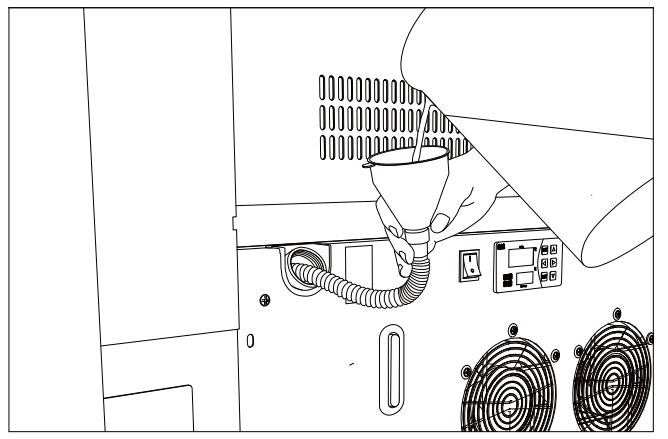

1. Add Water to the Chiller

Regular Monitoring: Check the water level in the chiller regularly to ensure it remains in the appropriate range. Normal Level Requirement: The water level must be at or above the green “NORMAL" zone. If the water level falls below the green “NORMAL" zone if it  reaches the red “ALARM" zone, refill the water immediately. Refilling: When refilling, ensure that the water level reaches the yellow “FULL" zone but does not exceed it. Warning: Operating the machine with water in the “ALARM" zone can cause overheating and potential damage to the laser and chiller components. Always Maintain the water level within the green "NORMAL" range for optimal performance.

2. Install the Exhaust Pipe

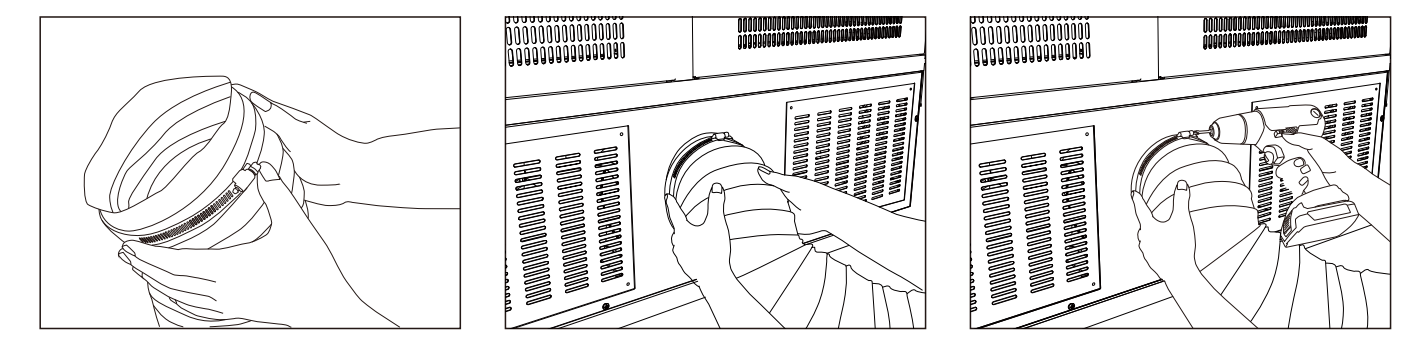

Screw in the exhaust pipe fixture, then fasten the rings after attaching the pipe to the fixture.
Use a screwdriver to loosen the screw of the exhaust pipe clamp, put the exhaust pipe clamp onto
the exhaust pipe, then put the exhaust pipe onto the outlet of the exhaust fan, and tighten the screw
of the exhaust pipe clamp. Finally, lead the other end of the pipe outside your windows or connect it
to your house ventilation
Note: The suggested length of the exhaust pipe is 4Meters. If your distance is longer than 4 meters,
You will need to add another exhaust fan, or the exhaust of the machine will not be good enough.

3. Remove the Fixing Latches

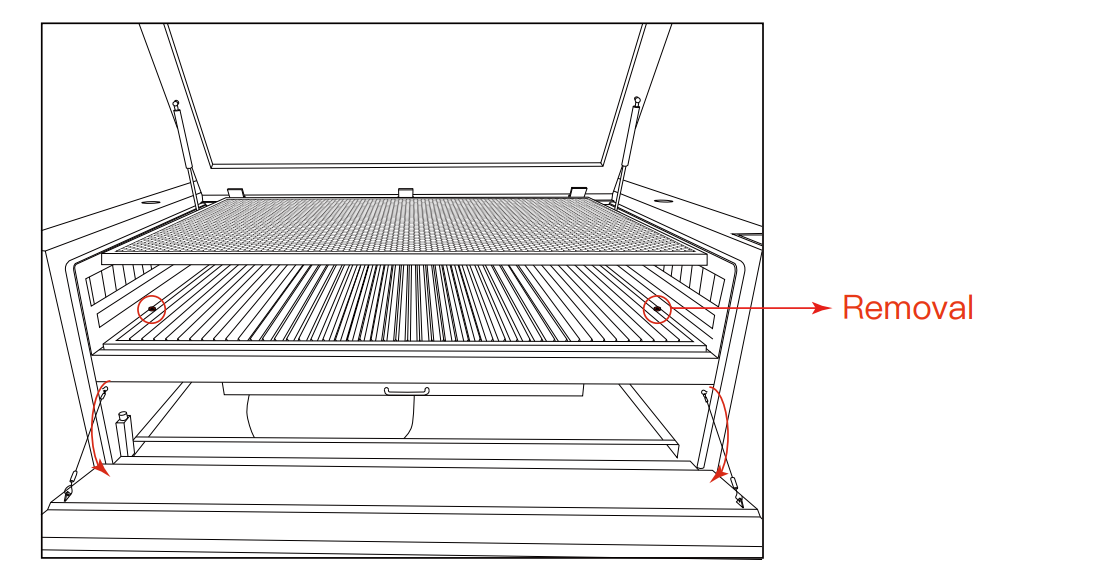

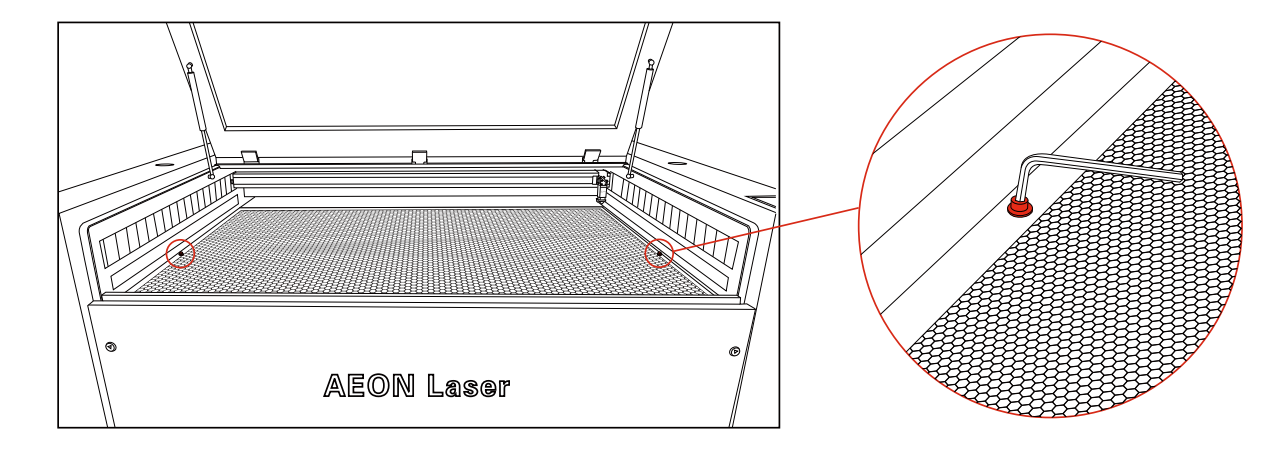

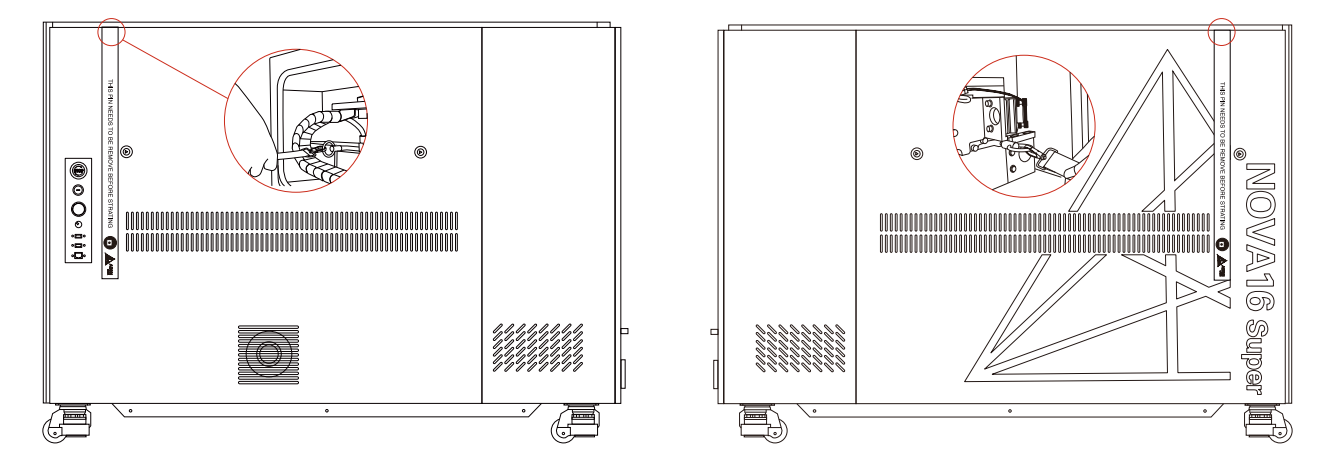

There are two fixing latches fixing the X and Y axes of the machine. It is a protective latch to ensure the axis will not move during transportation. Also, it is a positioning latch as well. If the engineer needed to remove the axis for repairing, they could find the original position of the axis very easily by inserting these latches. And this will make the axis squared quite fast. Open the right and left side panels of the machine; the right latch is located near the motor. And the left latch is located near the mirror holder.

4. Level the machine

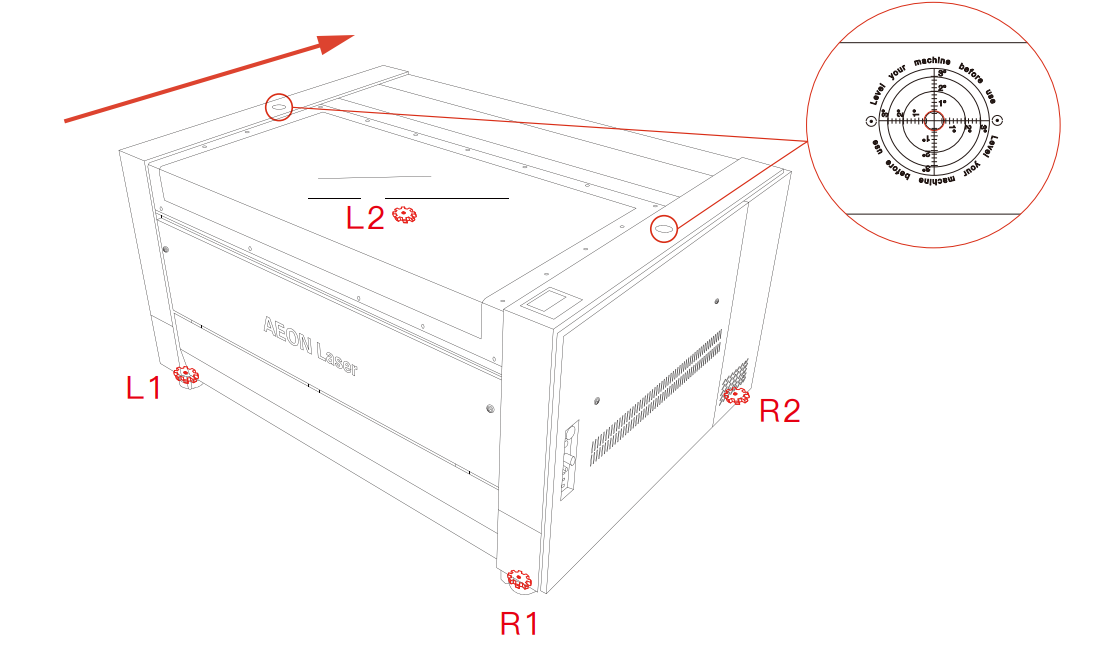

Proper leveling is essential; without it, the axles may suffer increased friction and distortion, significantly
shortening the lifespan of the rails. Each Redline series machine is equipped with a bullseye leveling
gauge, which makes leveling the machine much easier.
Check the leveling gauge to ensure the machine is properly leveled.

If the bubble is off-center, adjust the height regulator of the Footmaster wheel located at the bottom
of the machine.

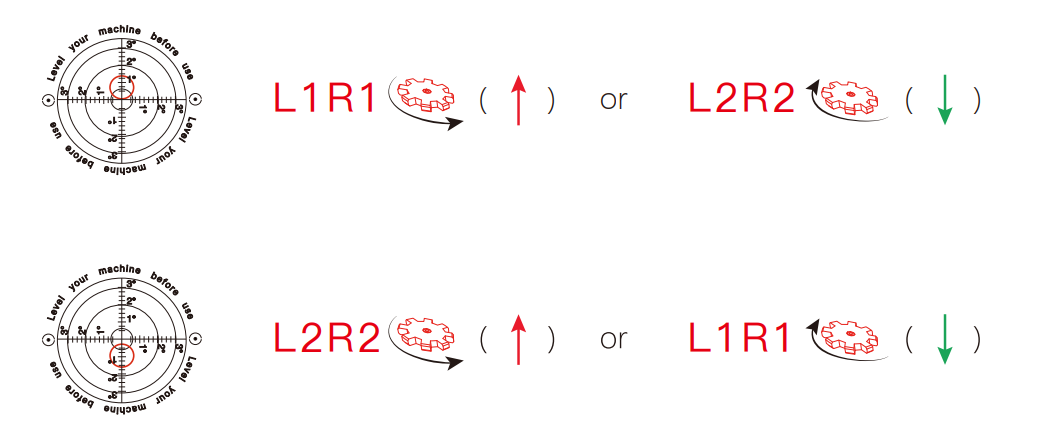

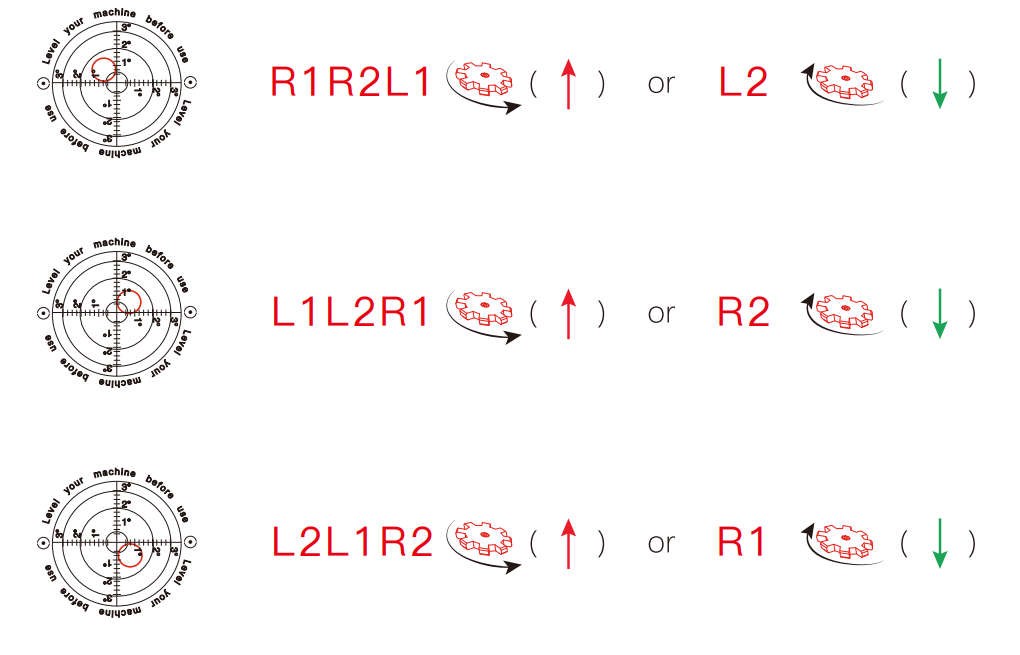

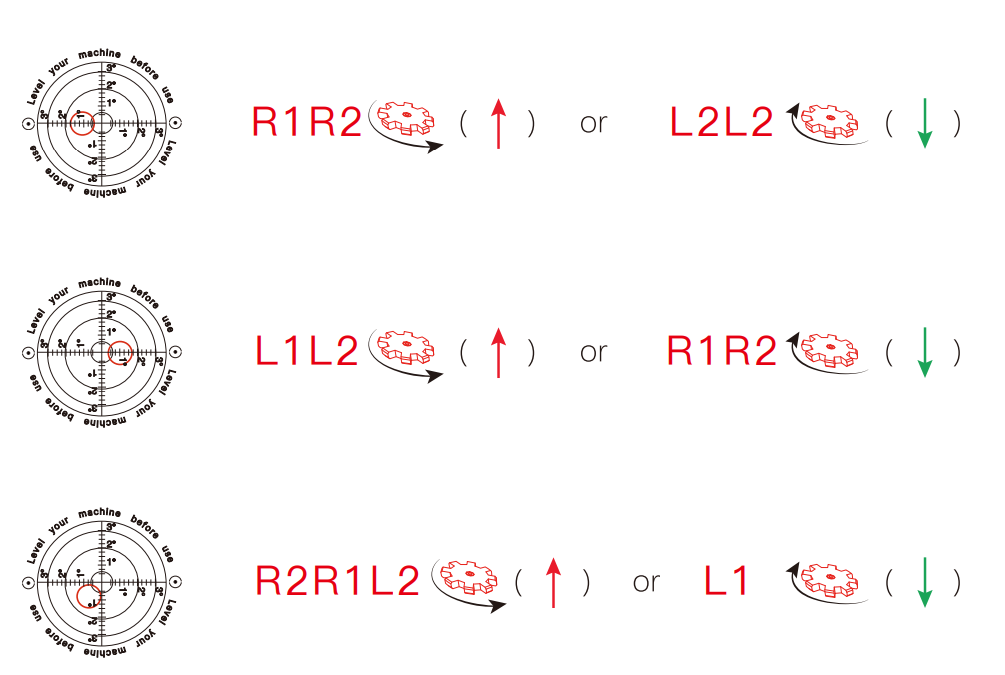

The adjustment is illustrated as follows:

4. Connect the power

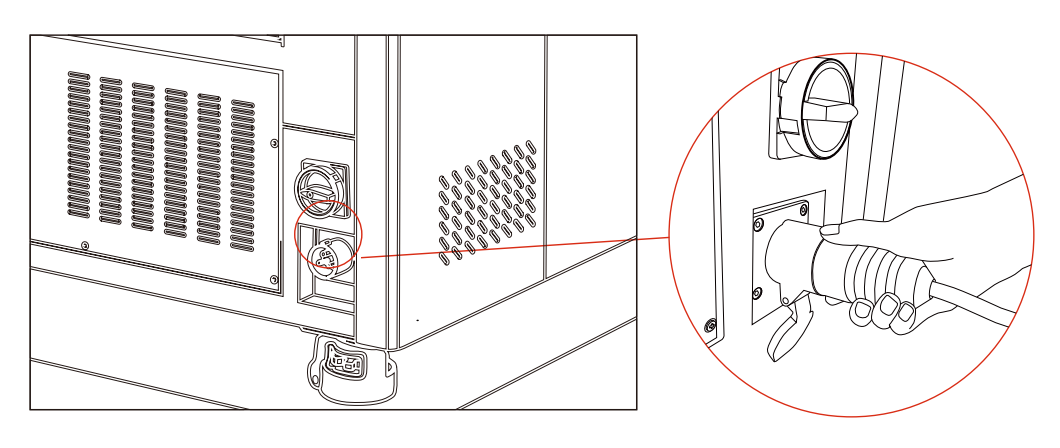

Find the power cord in the toolbox. One side plugs into the power inlet of the machine, and the other plugs into the socket of the power source.
Note: Please make sure the Ampere of your power socket is above 10A.
